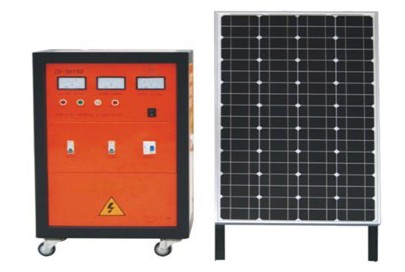

SP-150H |
| Technical data: |
| Capacity |
150W |
| System voltage |
12VDC |
| Best output power everyday |
346WH |
| Inverter |
Output wave |
Pure sine wave |
| Output voltage |
AC110V/220V |
| Output frequency |
50HZ/60HZ |
| Precision of output frequency |
±6% |
| Solar panel |
Pmax |
100W |
| Vmp |
17.5V |
| Imp |
5.7A |
| Battery |
Capacity |
12V120AH |
| Package data: |
| Part |
Size (L*W*H mm) |
Weight (kg) |
20' (pcs) |
40' (pcs) |
| Power box |
550*440*860 |
46 |
80 |
200 |
| Solar panel |
1200*850*45 |
11.5 |
| Solar panel bracket |
1460*85*75 |
12.5 |
| Battery |
425*185*269 |
32.9 |
| Load reference: |
| Name of Load |
Power(W) |
Quantity |
Working Time per Day (H) |
Working Days |
| Color TV |
65 |
1 |
3 |
3 days |
|
