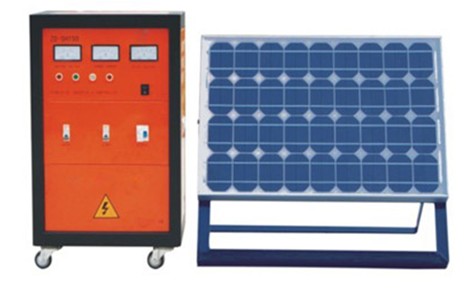

SP-150L |
| Technical data: |
| Capacity |
150W |
| System voltage |
12VDC |
| Best output power everyday |
173WH |
| Inverter |
Output wave |
Pure sine wave |
| Output voltage |
AC110V/220V |
| Output frequency |
50HZ/60HZ |
| Precision of output frequency |
±6% |
| Solar panel |
Pmax |
50W |
| Vmp |
17.5V |
| Imp |
2.9A |
| Battery |
Capacity |
12V75AH |
| Package data: |
|
|
|
|
| Part |
Size (L*W*H mm) |
Weight (kg) |
20' (pcs) |
40' (pcs) |
| Power box |
550*440*860 |
46 |
85 |
210 |
| Solar panel |
850*610*60 |
6.5 |
| Solar panel bracket |
825*760*55 |
9.2 |
| Battery |
270*180*258 |
21.8 |
| Load reference: |
| Name of Load |
Power(W) |
Quantity |
Working Time per Day (H) |
Working Days |
| Color TV |
65 |
1 |
2 |
3 days |
| Lamp |
11 |
2 |
6 |
|
|
